SeQual

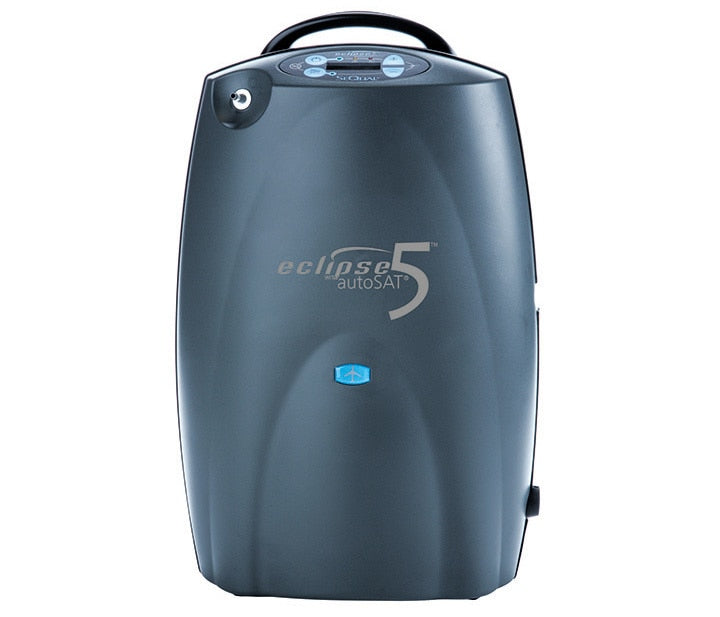

SeQual Eclipse 5 Portable Oxygen Concentrator 6900-SEQ
SeQual Eclipse 5 Portable Oxygen Concentrator 6900-SEQ
Couldn't load pickup availability
Main Features
- Compact and Transportable - Only 18.7 lbs, with an easy-to-attach traveling cart with telescoping handle and durable wheels.
- Extended Battery Life - Over 5 hours of battery life with ability to recharge while plugged into DC power at pulse setting 2.
- Quiet - At 40 dBa the sound level is one of the quietest on the market.
- Easy-to-Read Display - Large fonts and LCD display in LPM or mL for more accurate prescription verification.
- Enables Airline Travel - FAA-approved for commercial airline travel.
Description
The Eclipse 5 combines portability with clinical efficiency to treat a wide variety of your needs, no matter the range of your activity levels – giving you the freedom to travel and enjoy life on the go. Suitable for use 24/7 use, this all-in-one oxygen therapy device can provide continuous flow from 0.5 to 3 LPM (Liters Per Minute) and pulse doses up to a setting of 9.
Features
Powerful Air Separation Technology
The Eclipse 5 utilizes Vacuum Pressure Swing Adsorption (VPSA) powerful air separation technology that efficiently eliminates residual nitrogen while delivering the highest purity of oxygen. The robust design features allow for minimum maintenance and long life, providing a device you can rely on.
Reduced Maintenance
Robust design features superior sieve bed technology reducing required maintenance.
Compact and Transportable

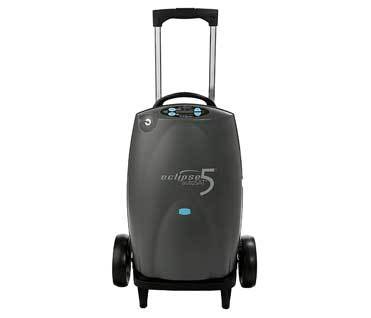

Only 18.7 lbs, with an easy-to-attach traveling cart with telescoping handle and durable wheels.
Continuous or Pulse Dose Delivery to Meet Patients' Needs
With 6 continuous flow settings up to 3 LPM and 9 pulse flow settings up to 192 mL bolus, the Eclipse 5 serves a wide range of patients.
Smart Technology to Ensure Oxygen Saturation
• autoSAT automatically adjusts the delivery of oxygen to the patient’s breathing rate
• UltraSense breath detection and adjustable rise time ensure consistent timing of oxygen delivery
Comprehensive Long-Term Warranty
CAIRE was the first manufacturer to offer a 3-year warranty on the device AND sieve beds.
Industry-Leading Reliability
Greater than 99% reliability rate out of the box.

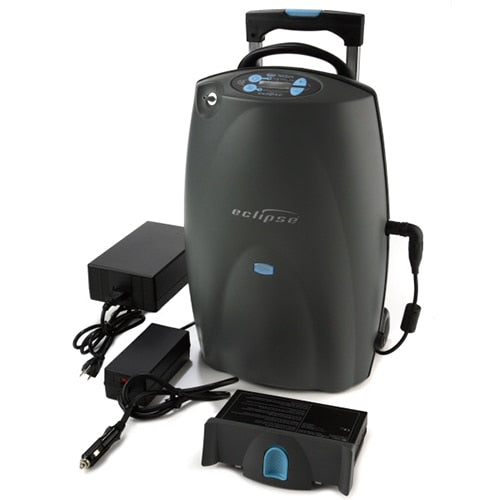

Includes
- Sequal Eclipse 5 Portable Oxygen Concentrator
- Lithium Ion Battery
- Cannula
- Spare Intake Filter

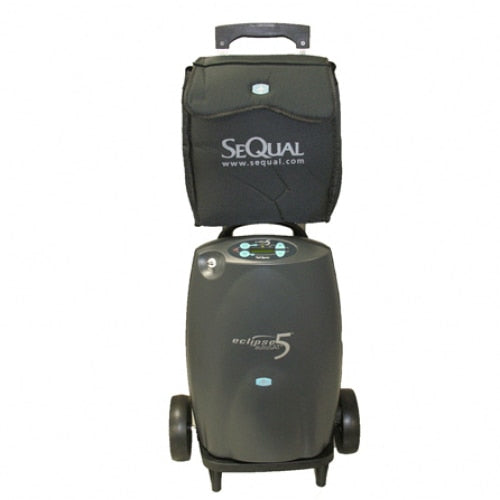

- Accessory Bag
- Pull Cart
- AC Power Supply
- DC Power Supply
- User Manual
Specifications
| Operating Modes | Pulse and Continuous Modes |
| Flow Control Settings | Pulse settings 1 to 9 Continuous setting 0.5 to 3 (in 0.5 increments) |
| Dimensions | 19.3" x 12.3" x 7.1" |
| Weight | 18.4 lbs |
| Battery Options | Standard Battery |
| Battery Duration | Up to 5.4 hours in pulse mode Up to 4.4 hours in continuous mode |
| Battery Charge Time | About 3 hours |
| Noise Level | 40 dBa at setting 3 in Pulse Mode |
| AC Input Range | 100 to 240 VAC; 50 to 60Hz |
| DC Input Range | 12 VDC minimum |
| Operating Altititude | Up to 13,123 ft |
| FAA Approved | Yes - FAA approved label visible on device |
| Oxygen Concentration Purity | 87%-96% at seal level at all settings |
| Warranty | 3 Years (1 Year on Pre-Owned Units) Please note - Any smoking while using the unit or evidence that unit has been used in a smoke filled environment will void the warranty. |
Battery Duration
| Flow Settings | In Pulse Mode | In Continuous Mode |
| Setting 0.5 | N/A | 4.4 hours |
| Setting 1 | 5.4 hours | 3.7 hours |
| Setting 2 | 5.1 hours | 2.0 hours |
| Setting 3 | 4.9 hours | 1.3 hours |
| Setting 4 | 4.0 hours | |
| Setting 5 | 3.7 hours | |
| Setting 6 | 3.5 hours | |
| Setting 7 | 2.5 hours | |
| Setting 8 | 2.0 hours | |
| Setting 9 | 1.7 hours |
*Runtimes in pulse mode are based on an average breathing rate of 12 breaths per minute
