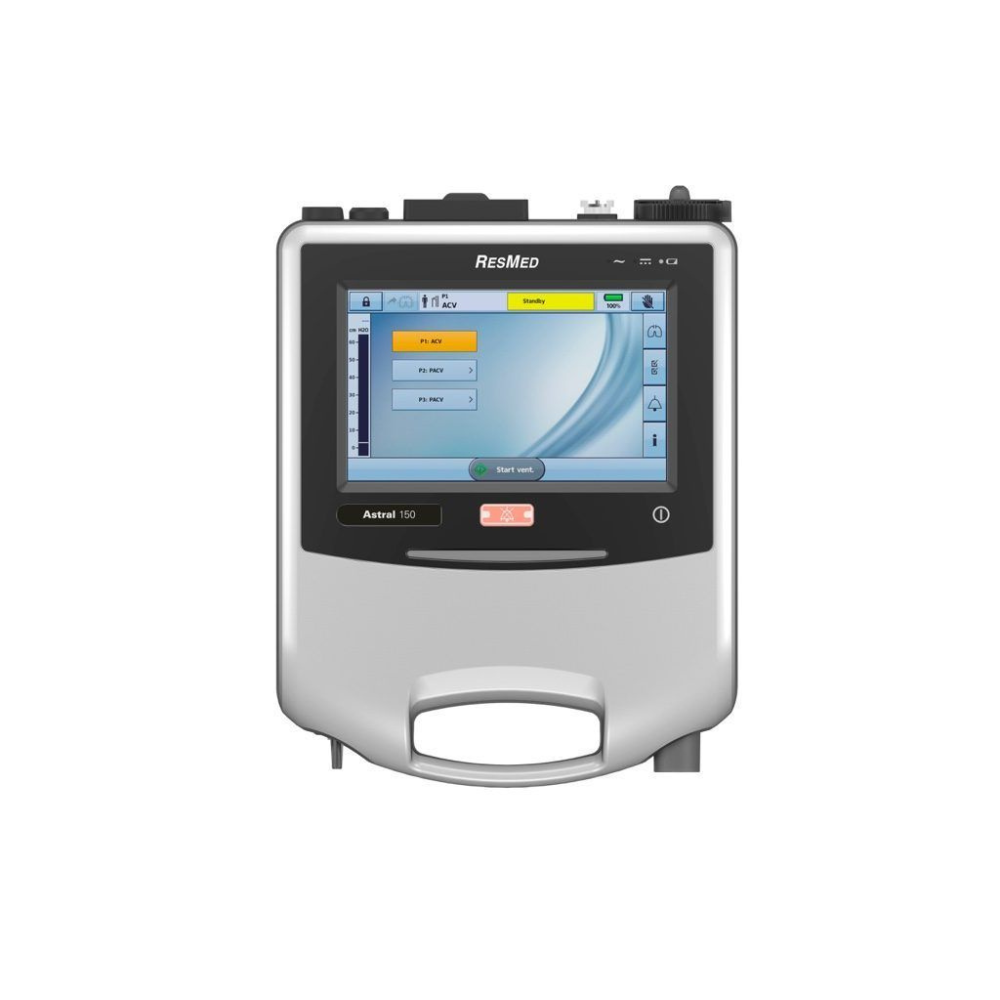

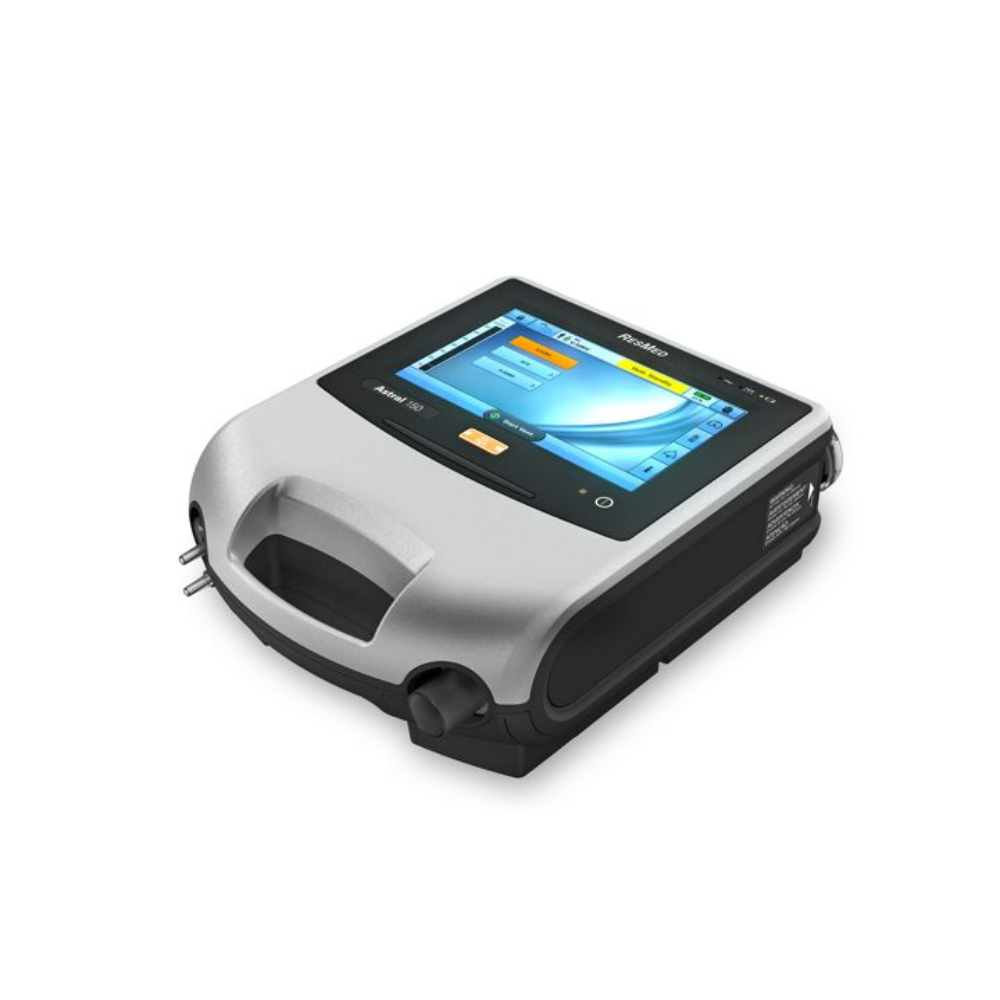

ResMed Astral 150 Portable Ventilator

ResMed Astral 150 Portable Ventilator

ResMed Astral 150 provide personalized care every step of the way. With both invasive and non-invasive options, they offer a lightweight design, exceptional battery life and adaptive technologies to provide greater mobility and peace of mind. Offers the same functionality as Astral 100 as well as a double-limb circuit and Fi02 monitoring.

ResMed Astral is one of the most advanced life support ventilators in respiratory care, proven to reach a stable state of ventilation in significantly less breaths than Philips Trilogy. Provide optimal care for patients with a wide range of respiratory disorders. Astral makes personalized ventilation easier than ever and adjusts to the changing conditions and breathing needs of patients with these innovative technologies:

intelligent Volume-Assured Pressure Support (iVAPS)

Learns, targets and aims to maintain each patient's unique alveolar ventilation.

intelligent Backup Rate (iBR)

Triggers the ventilator to add backup breaths as needed to bring patient back to target

AutoEPAP

Auto-adjusts the expiratory pressure in response to a patient’s partial or full upper airway obstructions

Features

• At only 7 lbs, Astral is lighter than the market-leading life support ventilator
• User-friendly menu and touch-screen big button features make it easy to operate
• Quickly switch between mouthpiece or mask ventilation without changing adapters. Switch programs with just a few buttons
• Alarms notify caregivers and healthcare providers when a potential issue arises

External Battery

• Provides up to 8 hours of backup power
• For increased freedom, two external batteries can be combined for 16 hours of continuous power

Mobility and Slim Fit Bag

• The Astral Mobility bag fits device and essential accessories, while the Astral SlimFit bag holds an Astral ventilator for a more compact design
• Both bags feature a broad shoulder strap and transparent protective panel display to check therapy, alarms and programs

ResMed Connectivity Module (RCM)

• Connects your Astral ventilator with our remote monitoring system, ResMed AirView
• Allows your physician and equipment provider to monitor your therapy and key data for early intervention

Circuit Support Arm

• Holds ventilation circuits and mouthpieces securely in the right position for therapy
• Offers full flexibility for easy adjustment but stays in place once set up on a bedside or wheelchair
• Installation kit included for quick setup

Astral Table Stand

• An ergonomic and convenient solution to place the Astral device on a bedside table
• Holds the device and external power supply at an inclined angle for convenient use and access

Quick and Easy Setup

• Astral’s intuitive navigation and menus streamline staff training and enable consistent and accurate patient setup
• QuickConnect, you can easily incorporate two pressure lines into one

Remote Alarm II

• Patients on life support require close attention and care, but they can recuperate with an appropriate amount of independence by staying connected to remote or hospital alarm systems

Specifications

• Brand: ResMed
• Series: Astral
• Product Type: Ventilator
• Length: 11.22"
• Width: 8.46"
• Height: 3.66"
• Weight: 7.05 lbs
• Battery Type: Lithium-Ion
• Internal Battery Power: 14.4 V, 6.6 Ah, 95 Wh
• Sound Power Level: 43 ± 3 dBA
• Sound Pressure Level: 35 ± 3 dBA
• Single Circuit with Leak: Yes
• Single Circuit with Valve: Yes
• Double Circuit: Yes
• Manual Breath: Yes
• Sigh Breath (recruitment): Yes
• Apnea Ventilation: Volume and Pressure
• Preset Programs: 4
• Delivered Pressure (cm H2O): 2 - 50 (leak circuit), 0 - 50 (valve circuit)
• Delivered Tidal Volume (cm H2O): Adult - 100 to 2500 mL, Pediatric - 50 to 300 mL
• Respiratory Rate: Adult - Off, 2 to 50 bpm & Pediatric - Off, 5 to 80 bpm
• SpO2 Monitoring: Optional
• FiO2 Monitoring: Standard
• On Screen: 30 days of summary data, Real-time pressure and flow (25 Hz)
• ResScan (via download): 365 days of summary data, 7 days of detailed data
• AirView (RCM required): 365 days of summary data, 7 days of detailed data
• FAA Compliant and Approved
