Pride Mobility

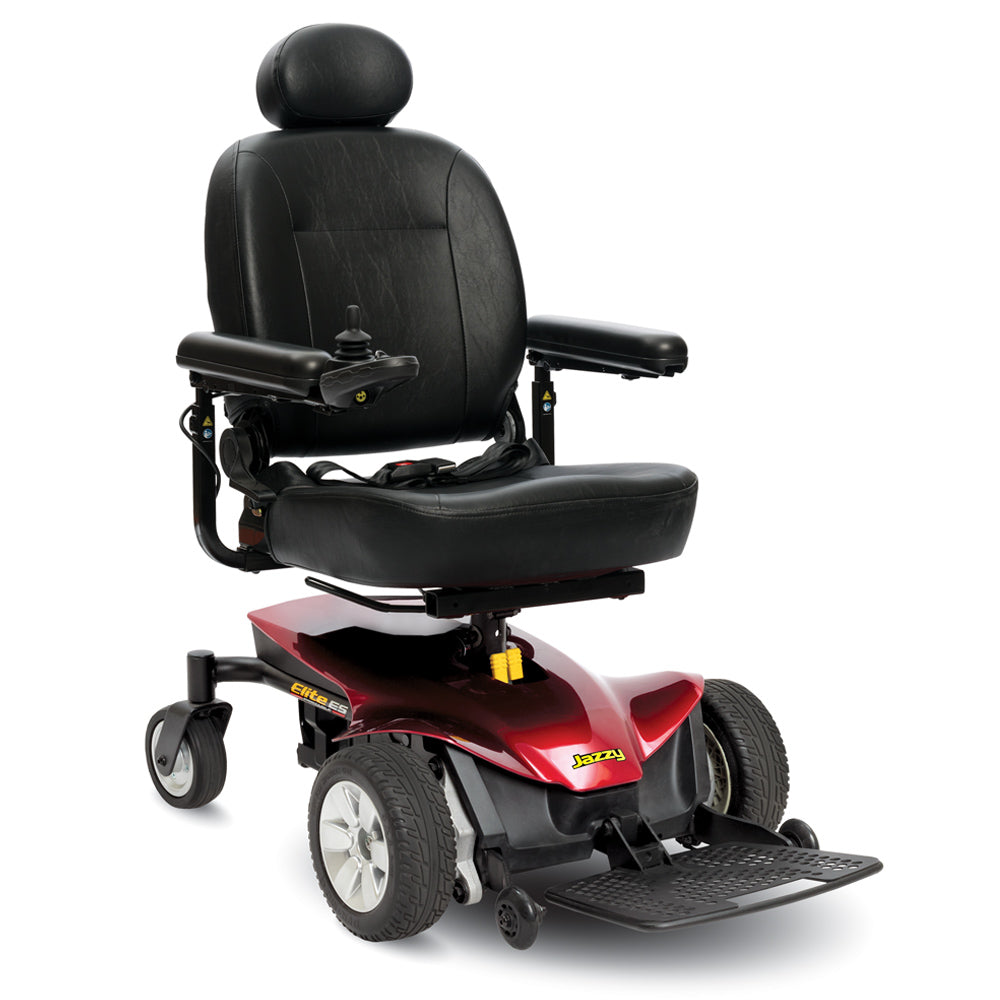

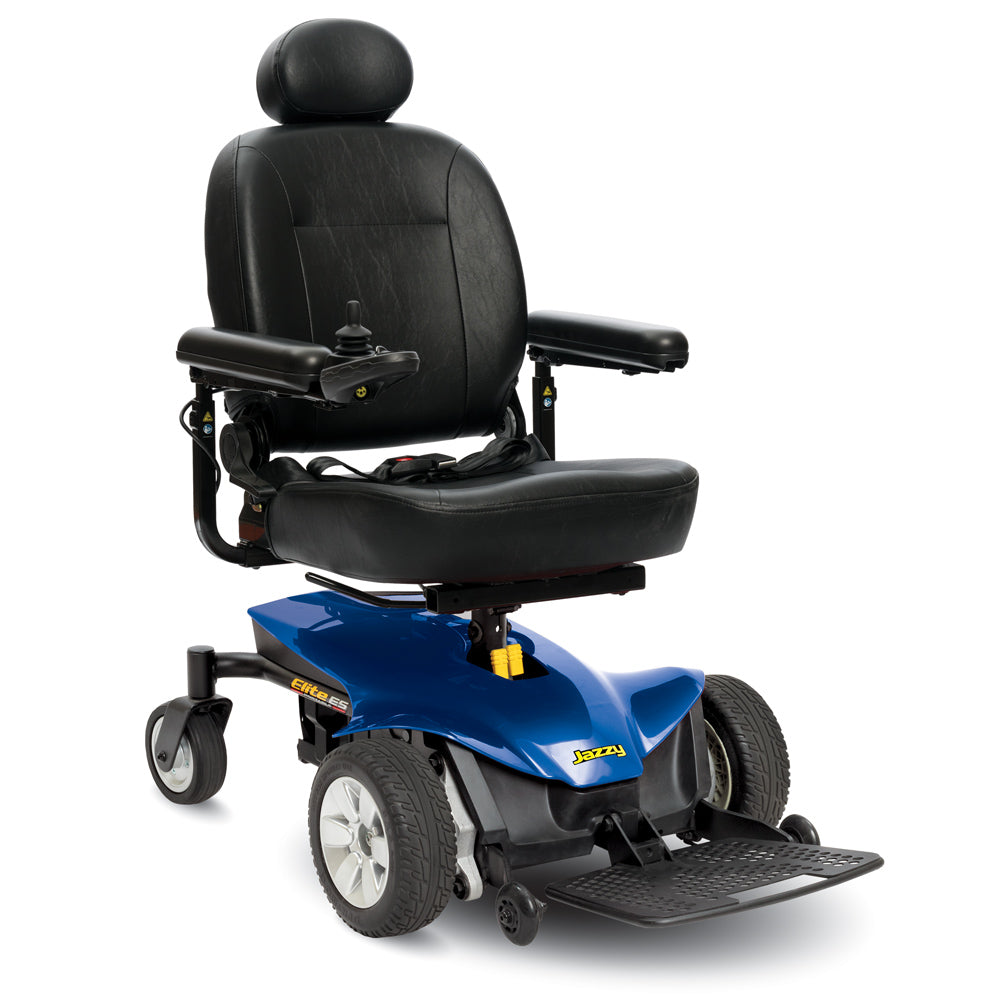

Pride Jazzy Elite ES Portable Power Chair
Pride Jazzy Elite ES Portable Power Chair
SKU: JZEESP-S1L7
Couldn't load pickup availability
***This item is not eligible for a return, refund, or an exchange once it has been shipped. All sales are final.***
The Jazzy® ES-Portable offers a combination of great style, comfort, performance and portability and disassembles into 5 convenient pieces for your active lifestyle.
The in-line, front-wheel drive design allows tight turns around corners, with large front wheels for extra absorption over obstacles.
With superb climbing capabilities and front anti-tip wheels, the Jazzy Elite ES Portable transitions over grade changes smoothly and handles various terrains with ease.
- Easy disassembly for convenient transport
- In-line, front-wheel drive technology
- 40 amp, PG GC 3 controller
- Simple main frame design for easy serviceability
* Pride FDA Class II Medical Devices are designed to aid individuals with mobility impairments.*
Specifications
| Model |
Jazzy Elite ES Portable
|
| Weight Capacity | 300 lbs. |
| Turning Radius | 25.5" |
| Width | 22.75" |
| Length | 34.75" |
| Maximum Speed | Up to 4 mph |
| Ground Clearance | 1.5" |
| Front Wheels | 3" solid anti-tips |
| Drive Wheels | 9" solid |
| Rear Wheels | 6" solid casters |
| Drivetrain | Two-motor, in-line, front-wheel drive |
| Braking System | Regenerative and electro-mechanical |
| Suspension Type | Limited |
| High-Back Seat (max. size) | 20"W x 20"D |
| High-Back Seat-to-Floor Range | 21.5" - 23.5" |
| Standard Electronics | 40A, PG GC3 |
| Battery Size (2 required) | 12 volt, U-1 |
| Standard Battery Charger | 3.5A, off-board |
| Per-Charge Range | Up to 11 miles |
| Battery Weight | 25 lbs. each |
| Weight of Heaviest Piece | 48 lbs. |
| Standard Seat Weight | 43 lbs. (comfort, high-back) |
| Standard Seat Size | 18"x18"-20" |
| Warranty | 5-year limited warranty on frame; 13-month limited warranty on electronics; 13-month limited warranty on drive motors; 13-month limited on batteries |
