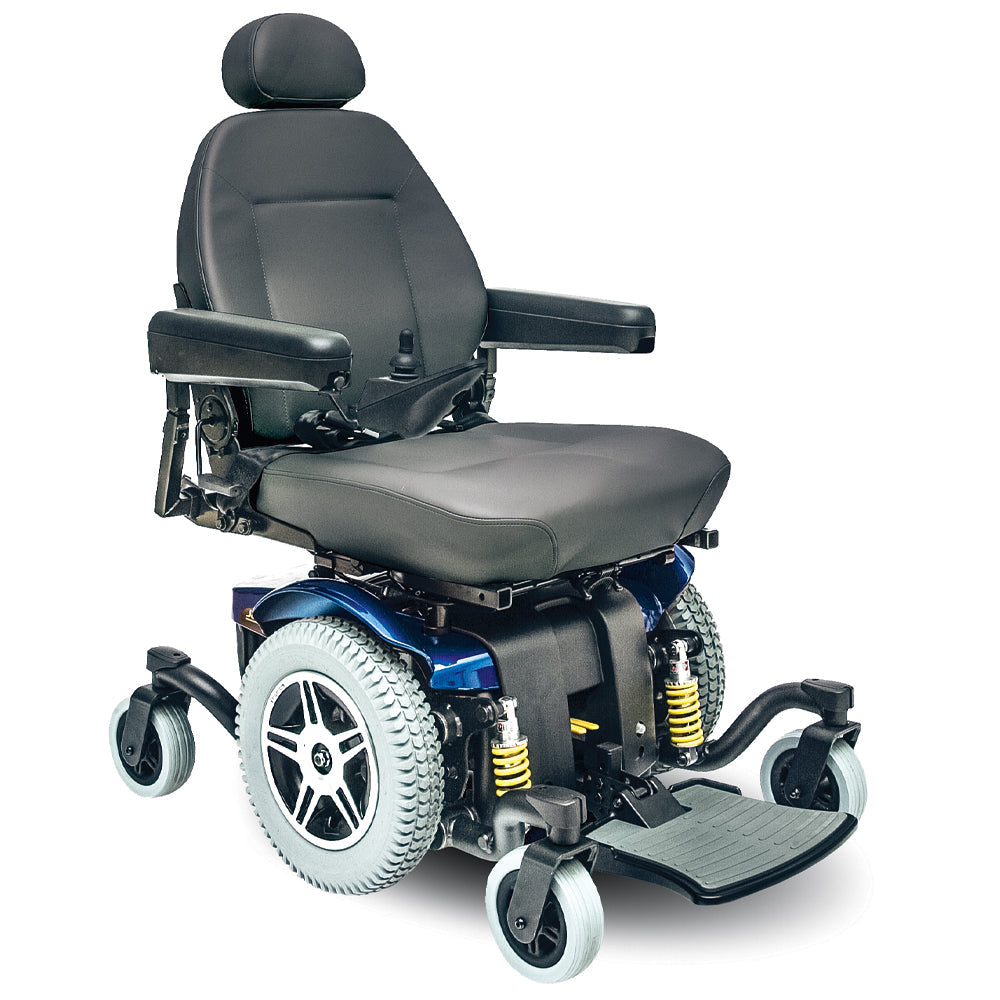

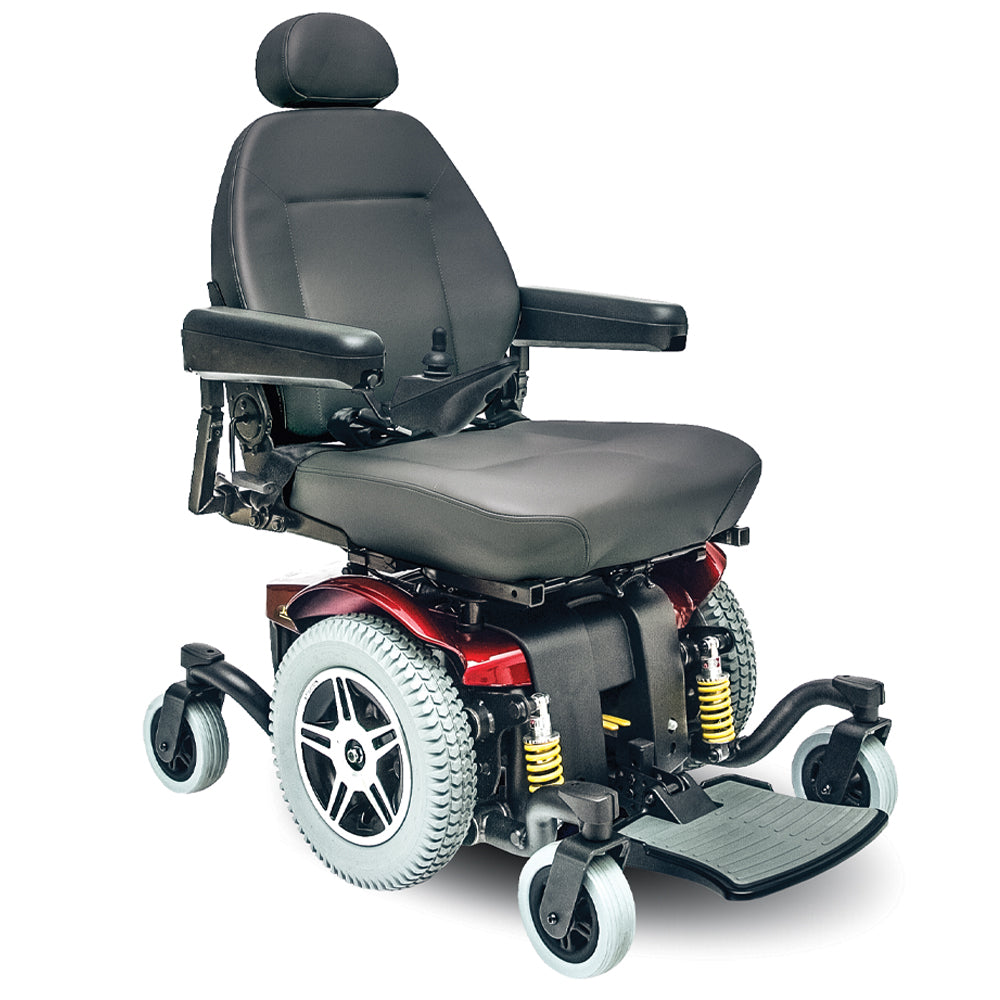

Pride Jazzy 614 HD Power Chair
Pride Jazzy 614 HD Power Chair
***This item is not eligible for a return, refund, or an exchange once it has been shipped. All sales are final.***
The Jazzy® 614 HD features patented Mid-wheel 6® technology and Active-Trac ATX Suspension for an outstanding level of performance, maneuverability and tight turning radius, all in one heavy-duty package.
Independent front casters raise and lower as needed to compensate instantly for changes in terrain, making transitions easy.
The Jazzy 614 HD features dual enhanced in-line motors for greater efficiency, torque, range and performance.

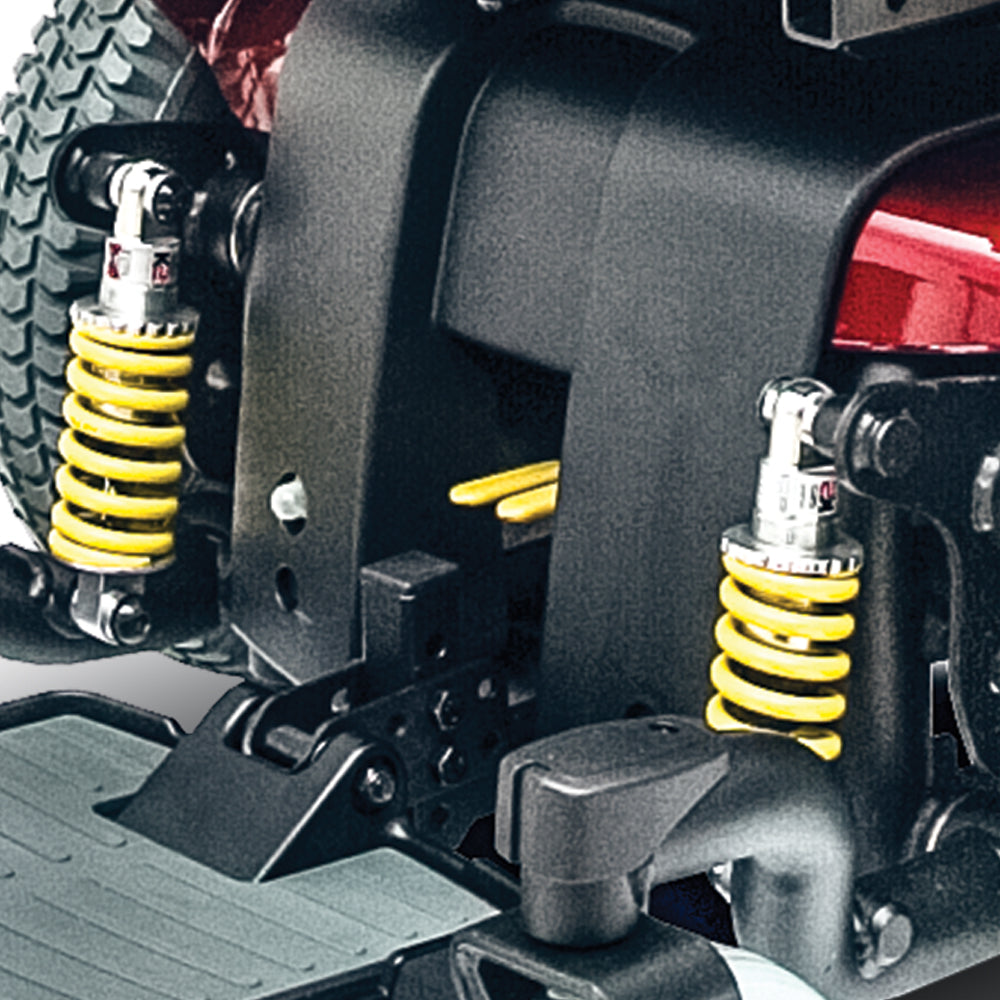

Independent drive wheel suspension allows each drive wheel to be independently supported by a dynamic spring-strut dampening system, reducing the vibrations caused by driving surfaces.
All-around performance indoors and out over most surfaces, inclines and slopes, makes the Jazzy 614 HD an excellent heavy-duty power chair choice.
Features
- Dual enhanced in-line motors for greater efficiency, torque, range and performance
- 450 lbs. weight capacity

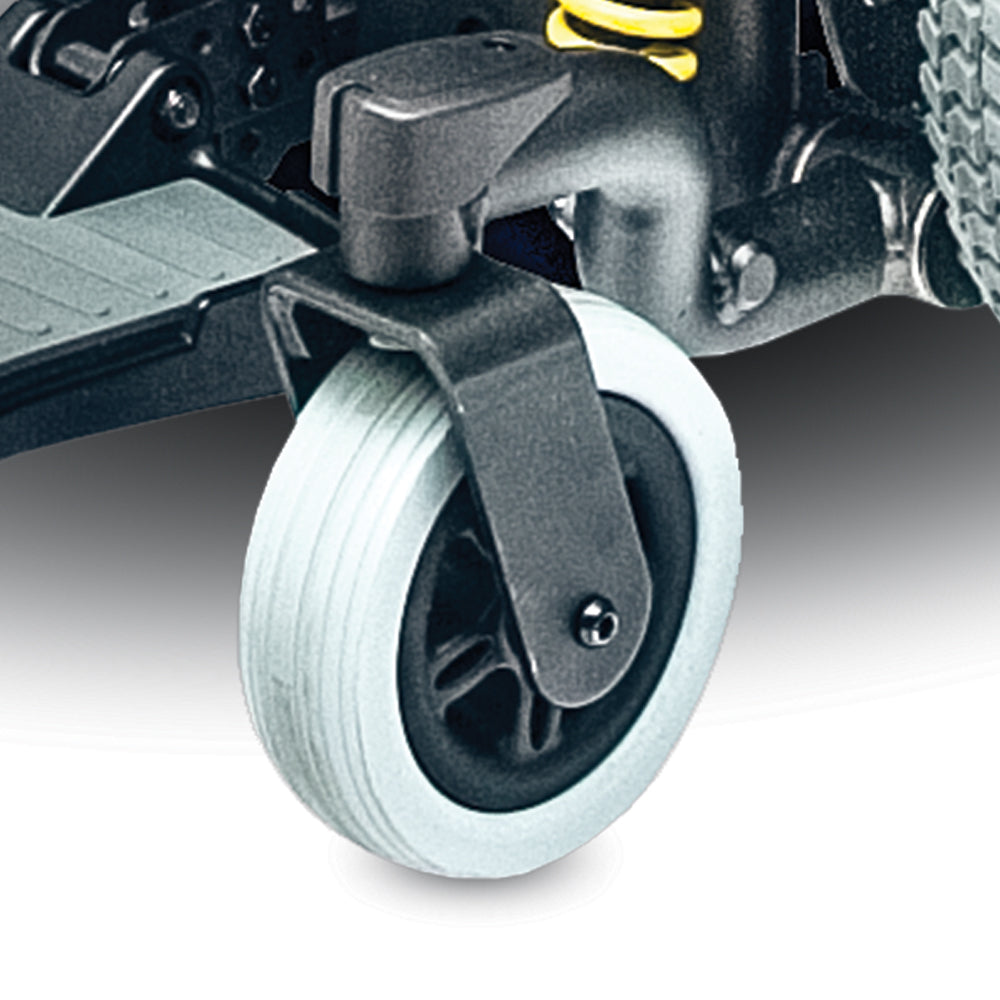

- 6” casters on front & rear for maximum stability
- Active-Trac® ATX Suspension for enhanced performance over more varied terrain
- Easy rear access to batteries
- Seating up to 24” W x 24” D
- Tool-less shroud removal
- Easy serviceability

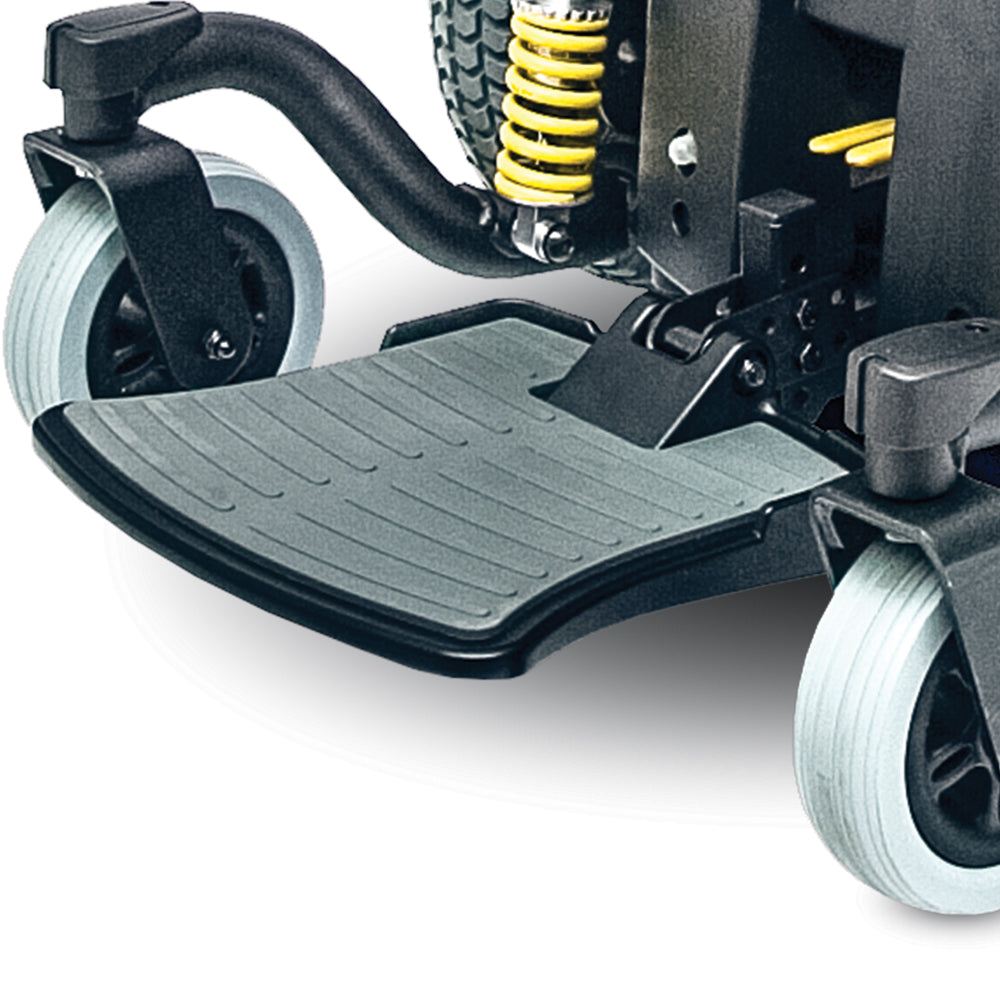

- Depth adjustable foot platform
* Pride FDA Class II Medical Devices are designed to aid individuals with mobility impairments.*
Specifications
Model |
Jazzy 614 HD
|
Weight Capacity | 450 LBS |
Turning Radius | 22.75" |
Width | 25.5" |
Length | 35.5" |
Maximum Speed | Up to 4.25 mph |
Ground Clearance | 2.25" |
Front Wheels | 6" solid casters |
Drive Wheels | 14" |
Rear Wheels | 6" solid casters |
Drivetrain | Two-motor, in-line, Mid-Wheel 6® |
Braking System | Regenerative and electro-mechanical |
Suspension Type | Active-Trac |
High-Back Seat (max. size) | 24"W x 24"D |
High-Back Seat-to-Floor Range | 20.5" - 23.5" |
Synergy® Seating | 24"W x 24"D |
Synergy® Seat-to-Floor Range | 17.75" - 19.75" |
Standard Electronics | 50A, Dynamic Shark |
Battery Size (2 required) | 12 volt, NF-22 |
Standard Battery Charger | 5A, off board |
Per-Charge Range | Up to 11 miles |
Battery Weight | 37 lbs. |
Weight of Heaviest Piece | 122 lbs. |
Standard Seat Weight | 52 lbs. (high-back) |
Standard Seat Size | 20" x 18"-20" |
Medicare Code Coverage | Group 2: Heavy Duty (K0824/K0825) |
Warranty | 5-year limited warranty on frame; 13-month limited warranty on electronics; 13-month limited warranty on drive motors; 13-month limited on batteries |
