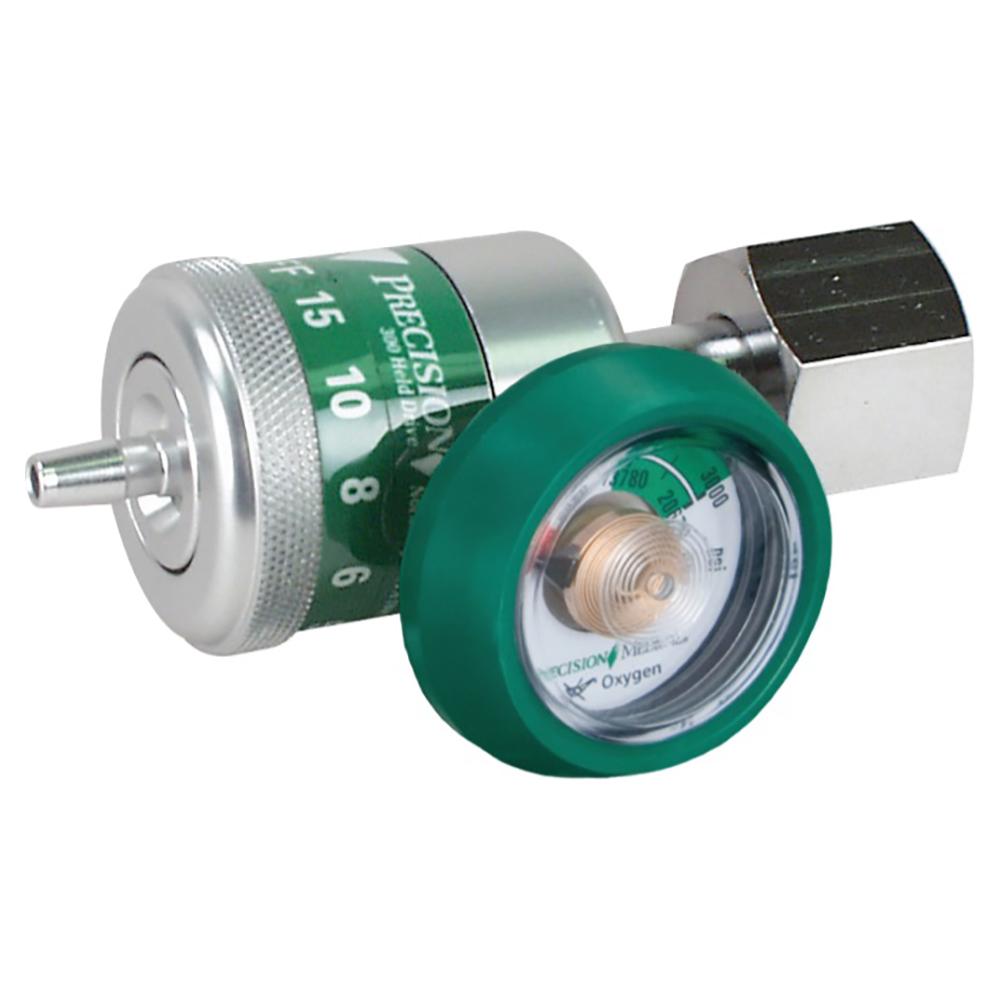

Precision Medical EasyDial Reg 540 Nut Style 0-15 LPM Oxygen Regulator

Precision Medical EasyDial Reg 540 Nut Style 0-15 LPM Oxygen Regulator

SKU: 165415D

Regular price $99.99 USD
Regular price $129.99 USD Sale price $99.99 USD
Sale Sold out
Shipping calculated at checkout.
Connection Type
Color

Precision Medical EasyDial Reg 540 Nut Style 0-15 LPM Oxygen Regulator

The unit's easily accessible flow adjustment knob is large and knurled making flow adjustment a cinch, even for the physically challenged. The easy dial reg features a built-in pressure relief valve, as well as a protected contents gauge. The low force Viton yoke seal provides a better tank-to-reg seal. Unique design minimizes normal flow variation that occurs as tank pressure drops.

Features

  • Reduced vibration for accurate readings
  • Regulate the flow of oxygen as needed
  • Includes metal ring
  • Knurled adjustment knob
  • Low force Viton yoke seal provides a better tank-to regulator seal
  • Lightweight aluminum body and cap
  • Clearly marked flow settings
  • Contents gauge on the front and the flow gauge on the top

Specifications

  • Brand: Precision Medical
  • Product Type: Oxygen Regulator
  • Length: 4.25"
  • Flow Range: 0 - 15 L/min
  • Settings: OFF, .50, 1, 1.5, 2, 3, 4, 5, 6, 8, 10, and 15
  • CGA Connection: Nut Style (540)
  • Accuracy: ±10% of indicated setting @ 70°F (21°C)
  • Storage Temperature Range: -4°F (-20°C) to 140°F (60°C)
  • Inlet Pressure Range: 300 - 3000 psi (2068 - 20684 kPa)
  • Ignition and Fault Tolerance: Meets ASTM G175-03
  • Weight: 0.49 lbs
  • Warranty: 5-Years
