Smiths Medical

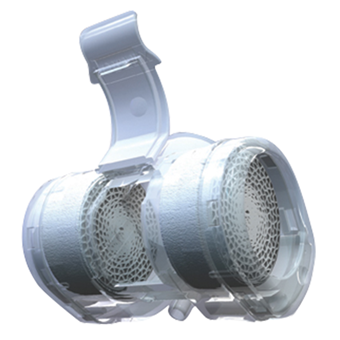

Portex Thermovent T2 Heat and Moisture Exchanger HME

Portex Thermovent T2 Heat and Moisture Exchanger HME

SKU: 100/570/022-SINGLE

$5.99 USD
$3.99 USD $5.99 USD
Sale Sold out
Shipping calculated at checkout.
Quantity

The Thermovent T2 is s sterile, single-use heat and moisture exchanger that provides effective humidification for spontaneously breathing patients whose upper airways are bypassed by a tracheal or tracheostomy tube.

These devices are used to:

  • Treat adult or pediatric patients with a tidal volume of more than 70 mL
  • Reduce heat loss through the bronchopulmonary tree
  • Help to prevent thickened secretions and changes in lung function
  • Supply additional oxygen when required
  • Facilitate the removal of secretions
  • Preserve humidity and minimize damage to tracheal epithelial cells

Product Benefits:

  • Simple opening port allows quick and easy access for a suction catheter to aid the removal of secretions.
  • Integrated oxygen port that can provide up to 60% oxygen concentrations to the patient via the simplest of connections.
  • Original Portexā„¢Ā Thermovent T paper media provides high-level performance heat and moisture exchange to patient.
  • Smooth, rounded edges aid patient comfort.
Oxygen Flow Rates/Inspired Oxygen Concentration
02L/min 1 2 3 4 5 6 7 8 9 10
02% 27 33 37 42 45 47 53 54 57 60

Moisture Output:Ā 25mgL-1Ā H2O @ 15 breath min-1Ā Tidal Volume 500mLĀ

Resistance to Flow
0.3 hPa (cmH2O) at gas flow rate 0.5L sec-1Ā (30L min-1) [0.6cm H2O L-1Ā sec-1]
0.7 hPa (cmH2O) at gas flow rate 1.0L sec-1Ā (60L min-1) [0.7cm H2O L-1Ā sec-1
1.2 hPa (cmH2O) at gas flow rate 1.5L sec-1Ā (90L min-1) [0.9cm H2O L-1Ā sec-1]

Dead Space:Ā 11mL
Weight:Ā 7.5g
Inspired Oxygen Concentration (%):Ā 15 breath/min
Tidal Volume:Ā 500mL
