Graham Field TENS Unit 2-Channel

Graham Field TENS Unit 2-Channel

SKU: GF-3

Regular price $45.95 USD
Regular price $52.95 USD Sale price $45.95 USD
Sale Sold out
Shipping calculated at checkout.

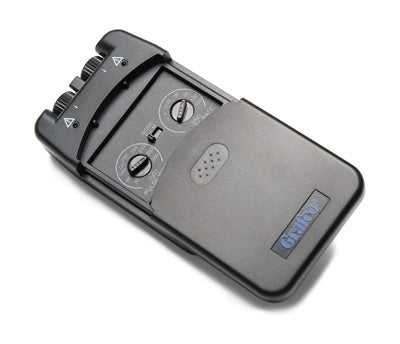

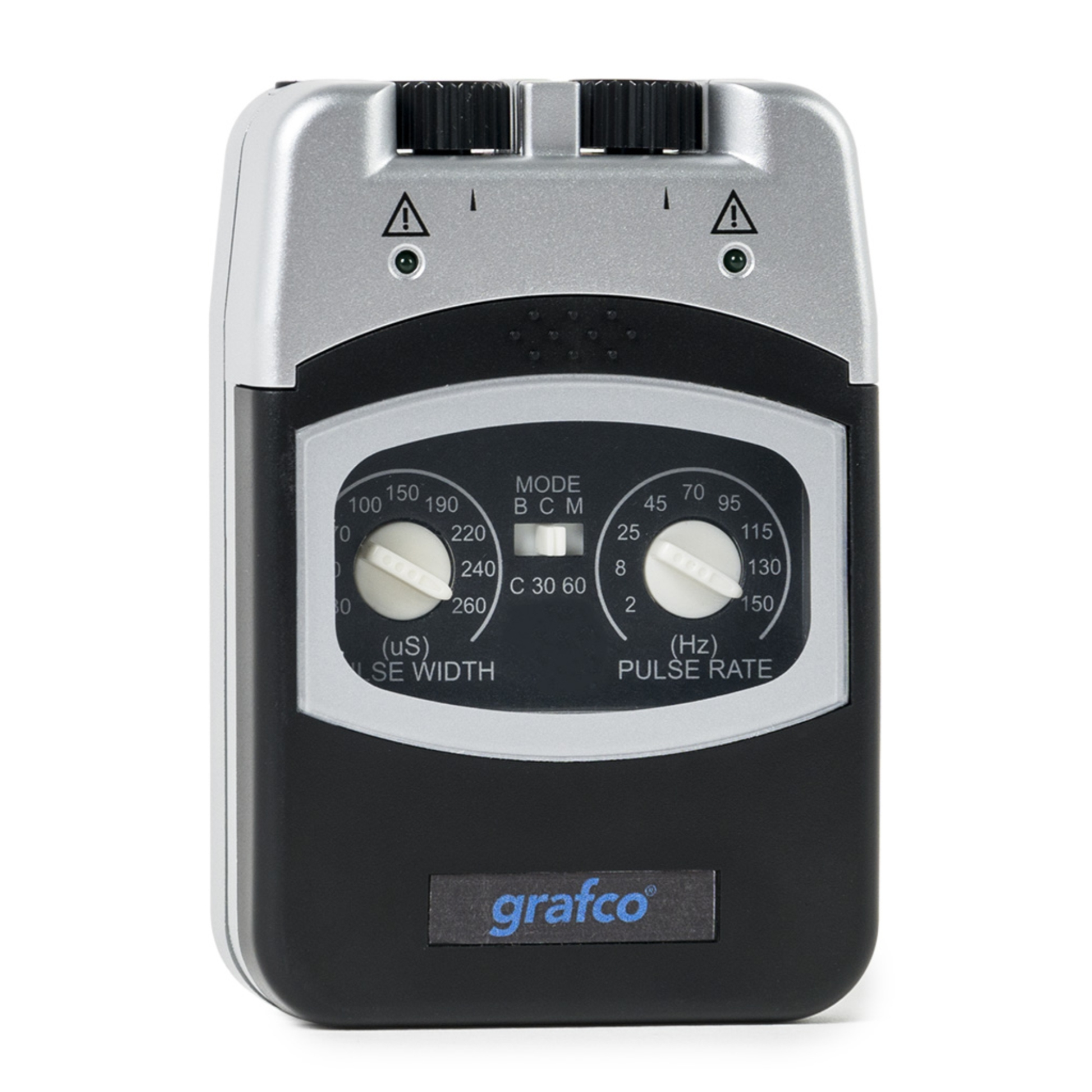

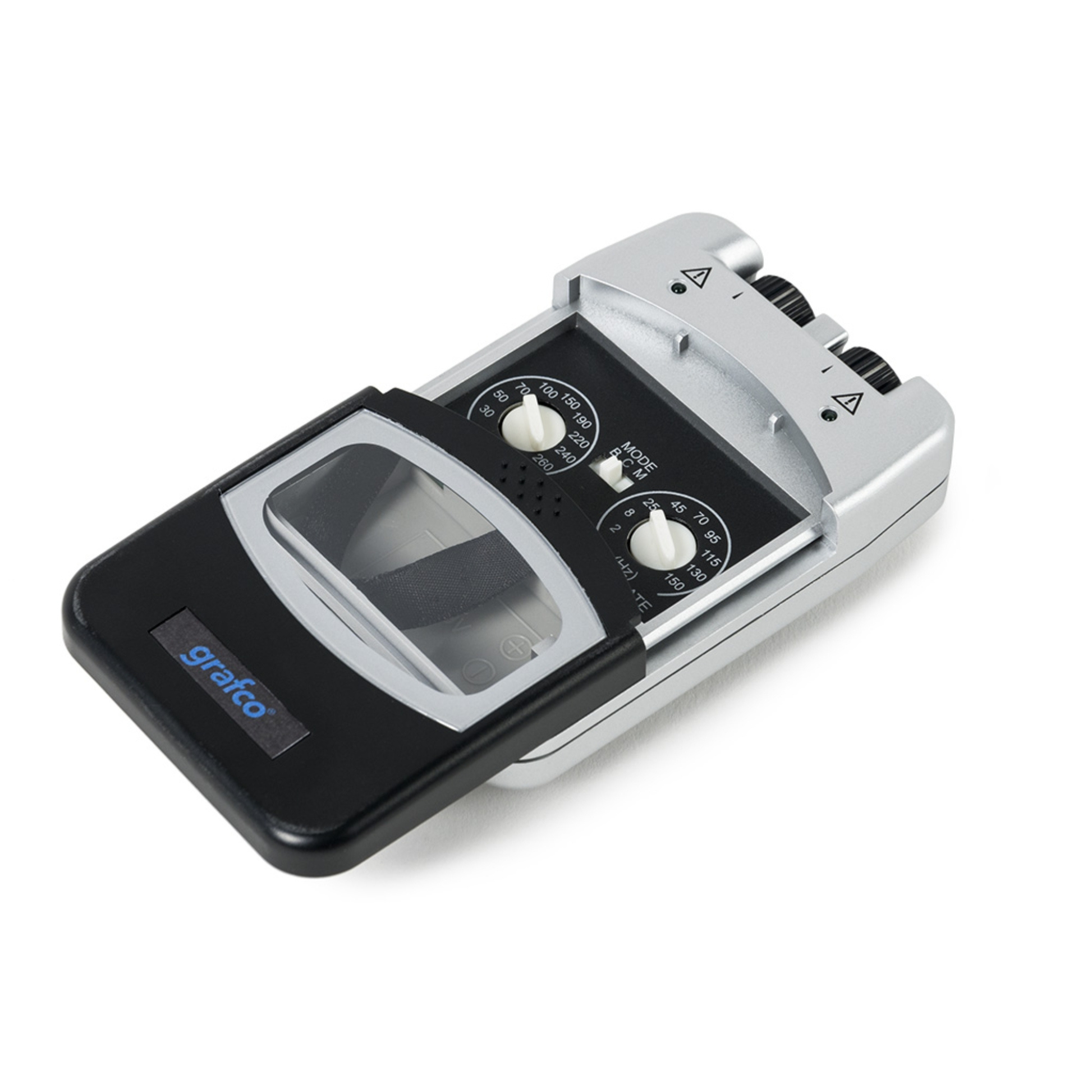

Graham Field TENS Unit 2-Channel

T.E.N.S. (Transcutaneous Electrical Nerve Stimulation) is indicated under a physician's prescription for the symptomatic relief and management of chronic (long-term) pain and the treatment of post-operative or post-traumatic pain.

Features

  • Dual channels
  • Three modes: Standard, Burst, Modulation

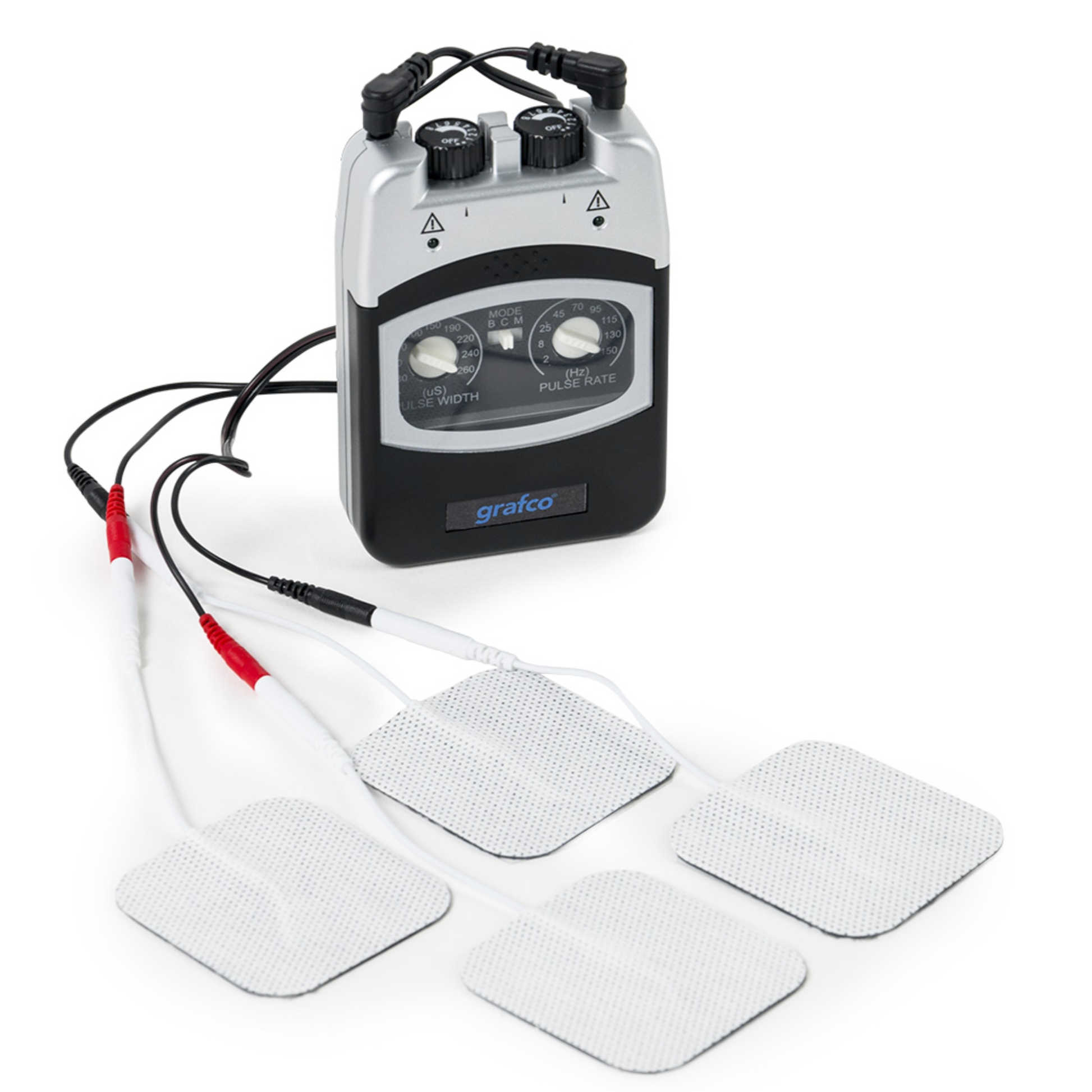

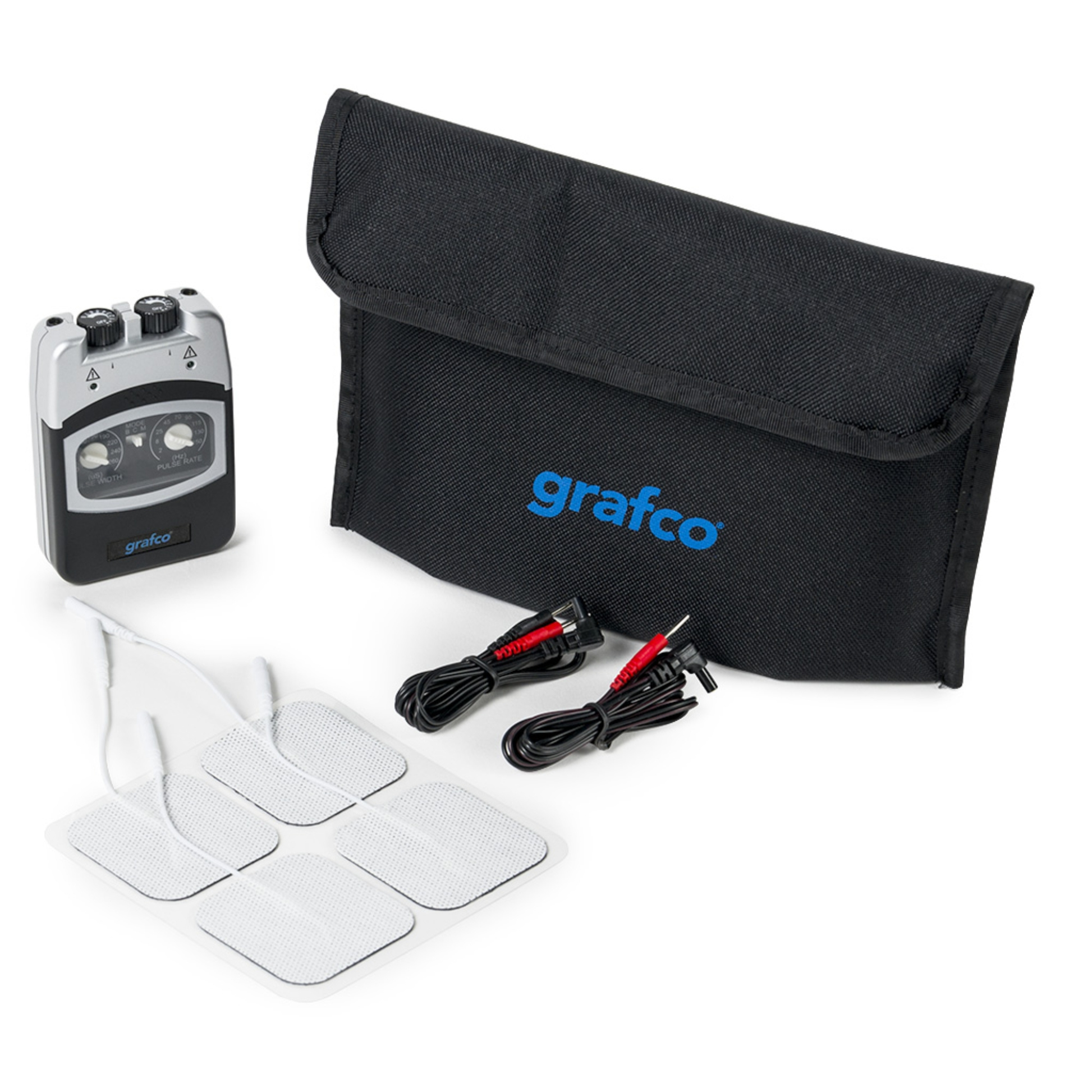

  • Includes: TENS unit, molded carrying case, instructions and accessories (four electrodes and lead wires)
  • Modulation Mode: Pulse width is automatically varied in a cyclic pattern over an interval of nominally 5.0 seconds maximum. Pulse width decreases linearly over a period of 1.5 seconds from the control setting value to a value which is decreased 45% maximum. The narrower pulse width will continue for 2 seconds maximum, then increase linearly over a 1.5 second period to its original value. The cycle is then repeated
  • Burst Mode: Bursts consist of 9 & 2 pulses at maximum pulse rate. Bursts occur twice every second

Specifications:

  • Brand: Graham Field
  • Product Type: TENS Analog
  • Required (not included): One 9-Volt alkaline battery
  • Pulse Rate: (Adjustable) 2 Hz - 120 Hz
  • Channels: Dual
  • Pulse Amplitude: Adjustable, 80 mA peak maximum for positive pulse or -20 mA peak maximum for negative pulse into 500 ohm load each channel
  • Pulse Width: (Adjustable) 40 - 260 microns
