Graham Field
Graham Field Hydraulic Lifts
Graham Field Hydraulic Lifts
SKU: LF1030
Regular price
$765.95 USD
Regular price
$882.95 USD
Sale price
$765.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

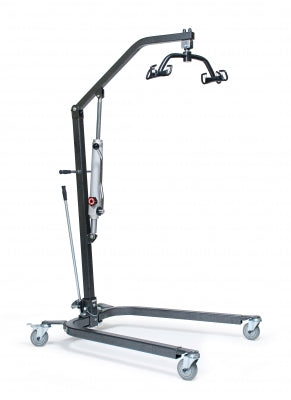

Graham Field Hydraulic Lifts
Features
- Heavy gauge steel construction
- Six point spreader bar with 360° rotation
- Uses Lumex six-point, four-point or two-point slings

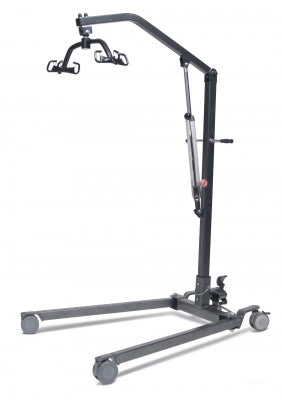

- Foot pedal manually adjustable base (LF1031FP model)
- Ergonomic placement of hydraulic pump handle facilitates ease of use
- Disassembles for easy storage
- Maximum weight capacity 400 lb
- Optional digital scale available
- Designed to meet the requirements of HCPCS code:E0630
- 1 year limited warranty
Specifications
| Model / SKU | LF1030 and LF1031 | LF1031FP |
| Floor Clearance | 5.5" | 4.4" |
| Lifting Range Min Height | 27.4" |
23.8" |
| Max Height | 80.3" | 75" |
| Overall Length | 48" | 53.5" |
| Overall Height | 55" | 56.8" |
| Overall Width | 24.6" | 26" |
| Max Base Width | 43" | 41" |
| Min Base Width | 24.6" | 26" |
| Weight | 90 lbs | 90 lbs |
