Golden Technologies Compass HD Bariatric Powerchair

Golden Technologies Compass HD Bariatric Powerchair

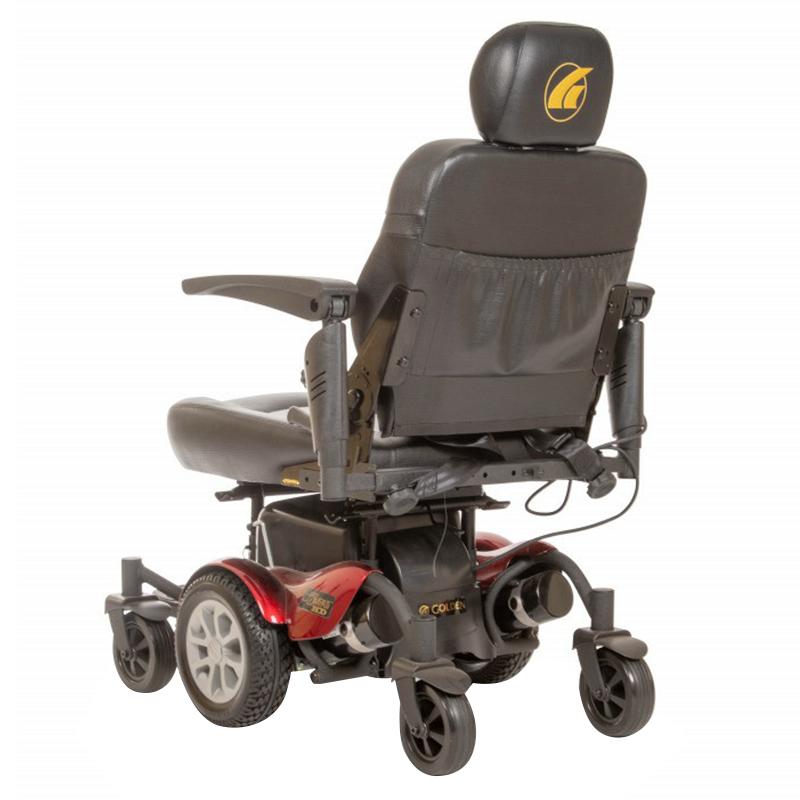

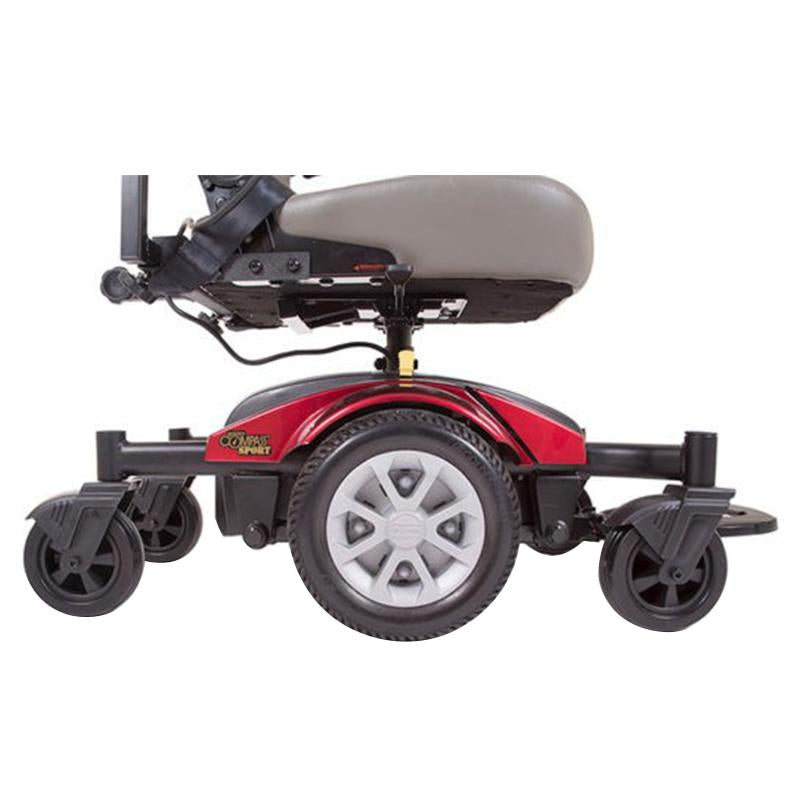

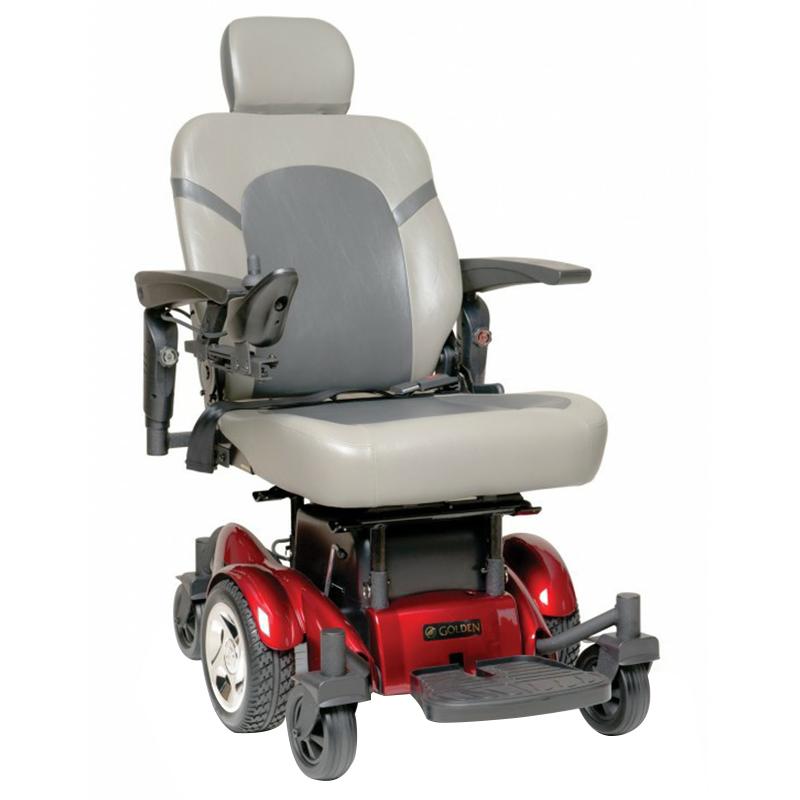

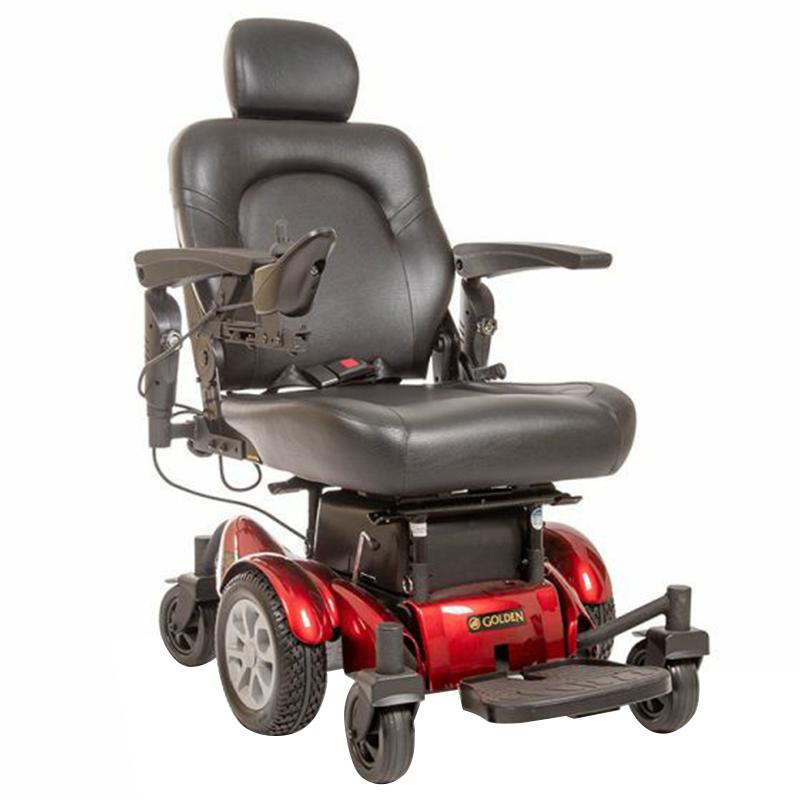

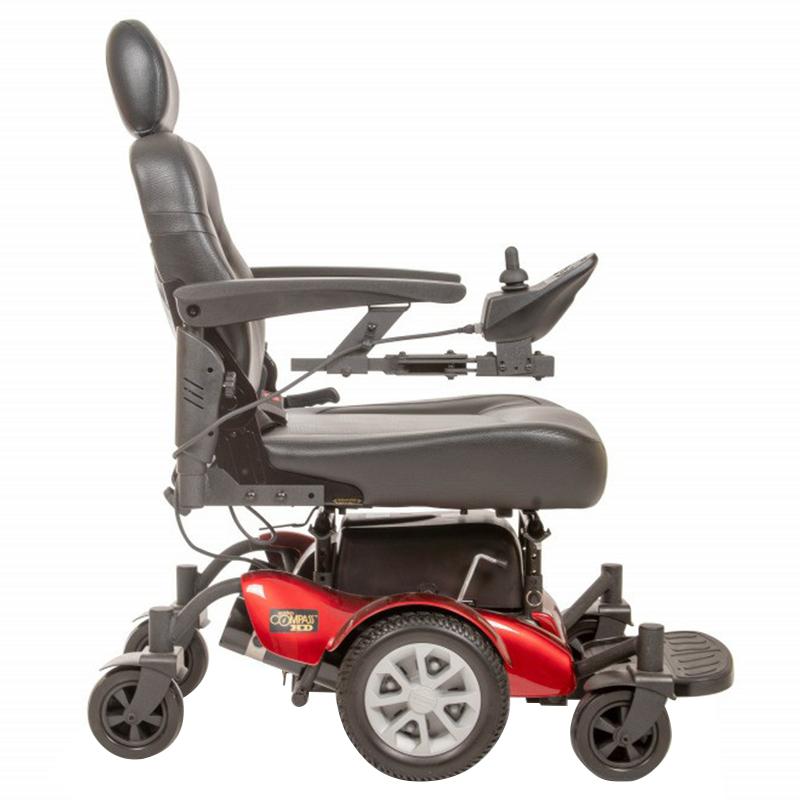

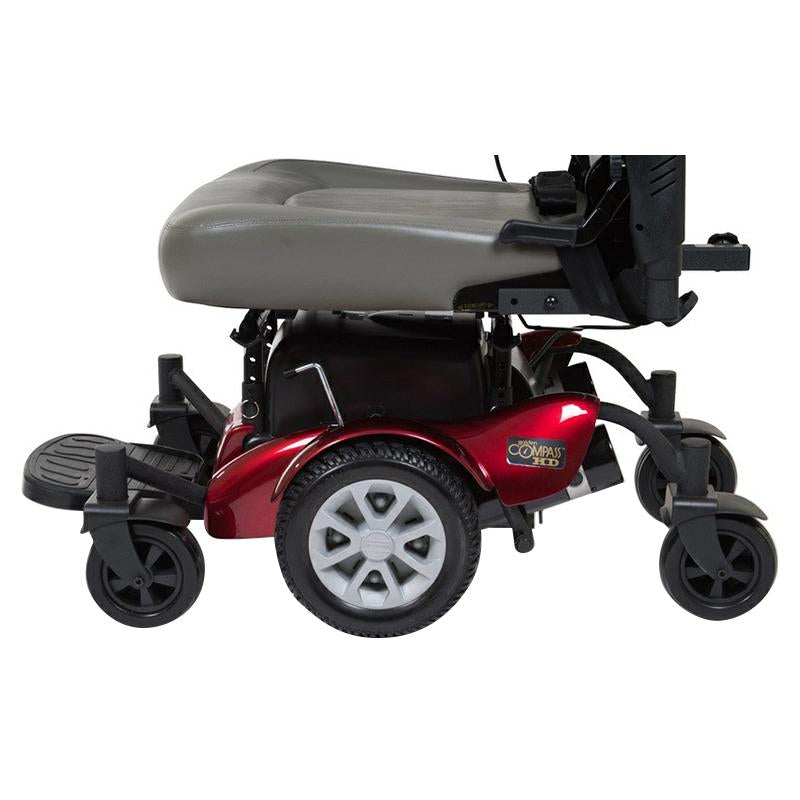

The Golden Compass HD offers you a stable, center-wheel-drive platform and an articulating chassis for stability over tough terrain. A bigger, beefier version of the popular Compass Sport, the Compass HD has a 450 lb. weight capacity, yet a modest 20-inch turning radius. It comes standard with a captain’s seat and our exclusive fold-flat seat hinge design for easy transport.

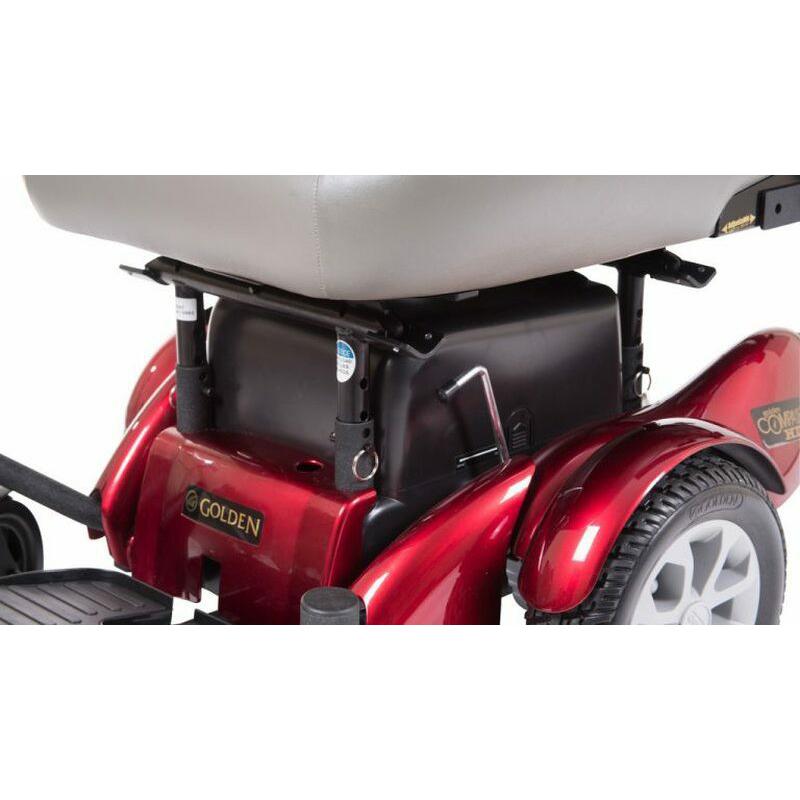

The Compass HD features front and rear height-adjustable seat posts, padded flip-up armrests, an easy-to-use sliding seat bracket and a fully adjustable footplate. With this lineup of features, the Golden Compass HD can take you to places you could only imagine!

Features

• Standard captain’s seat with our exclusive fold-flat seat hinge design
• Optional seating includes proflex seat and van/pan seat
• Exclusive slide seat mechanism for easy seat removal and attachment
• Adjustable headrest and armrests

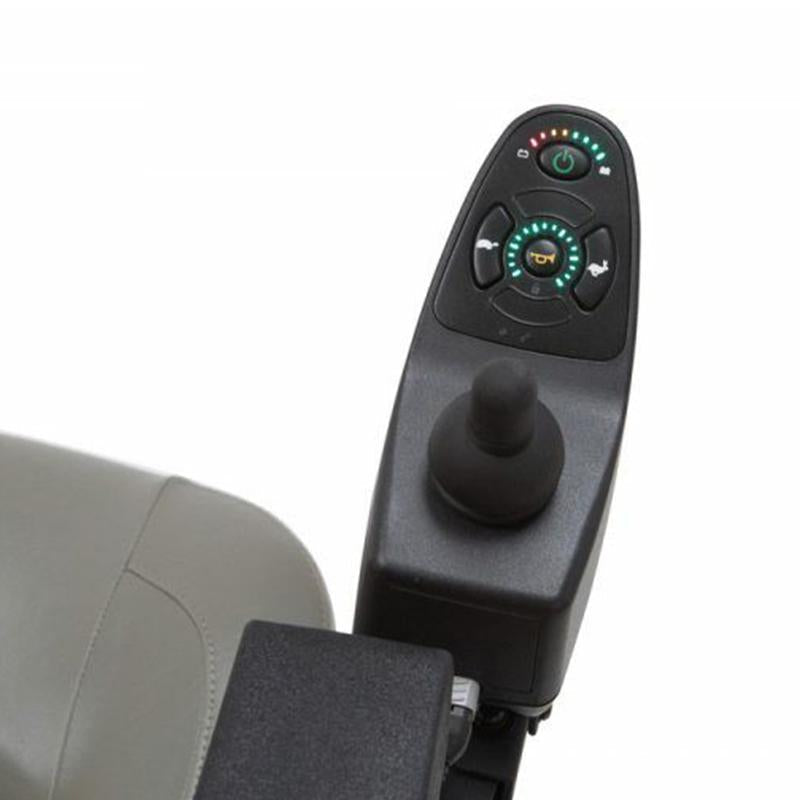

• 75 amp peak dynamic shark controller standard
• Off-board charger
• Accessories available: elevating leg rests, specialty leg supports, swing-away footrests, footplate extender
• Uses 22NF batteries

Specifications

• Brand: Golden Technologies
• Product Type: Powerchair

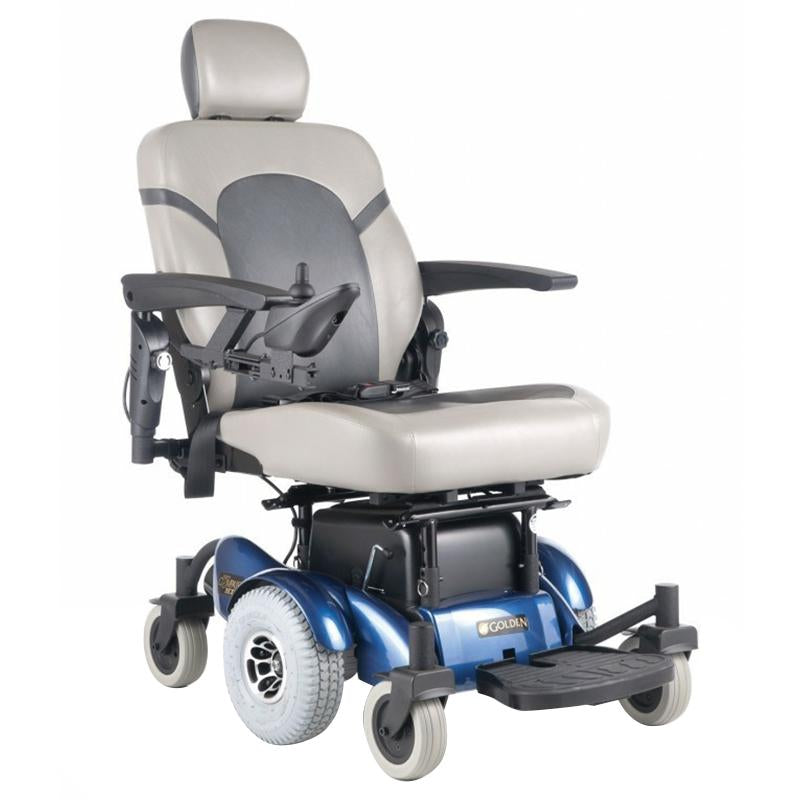

• Body Colors: Red, Blue
• Seat Color: Black Vinyl
• Weight Capacity: 450 lbs
• Drive Wheels: Center
• Maximum Speed: 4 mph
• Operating Range: 12 miles
• Ground Clearance: 3.5"
• Turning Radius: 20"
• Type Batteries: 2-NF22
• Controller: 75 Amp
• Length: 40"
• Width: 25"
• Height (ground to top of back of seat): 38.25" - 42.75"
• Height (ground to top of back of headrest): 47.25" - 53.75"
• Ground to Top of Seat: 21.25" - 24.25"
• Number of Seat Height Positions: 5
• Size of Increments: 0.5"
• Center Tire: 10"
• Casters Tire: 6"
• Seat Back Height - No Headrest: 19"
• Seat Back Height with Headrest: 26.5" - 30"
• Seat Dimensions: 20" x 20"/18"
• Height Adjustable: 3" - 7"
• Angle Adjustable: 0 - 35 degrees

• Assembled Weight: 226 lbs
• Base: 101 lbs
• Seat with Arms: 51 lbs
• Batteries: 37 lbs each

• Frame: 5 Years
• Drive Train: 13 Months
• Electronics: 13 Months
• Batteries: 12 Months
