ABM Respiratory Care

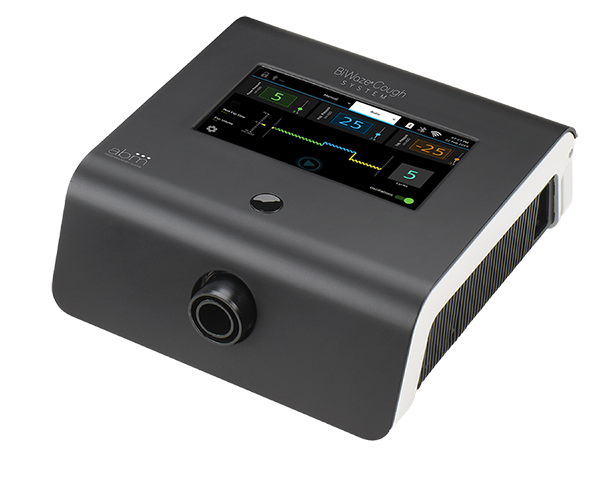

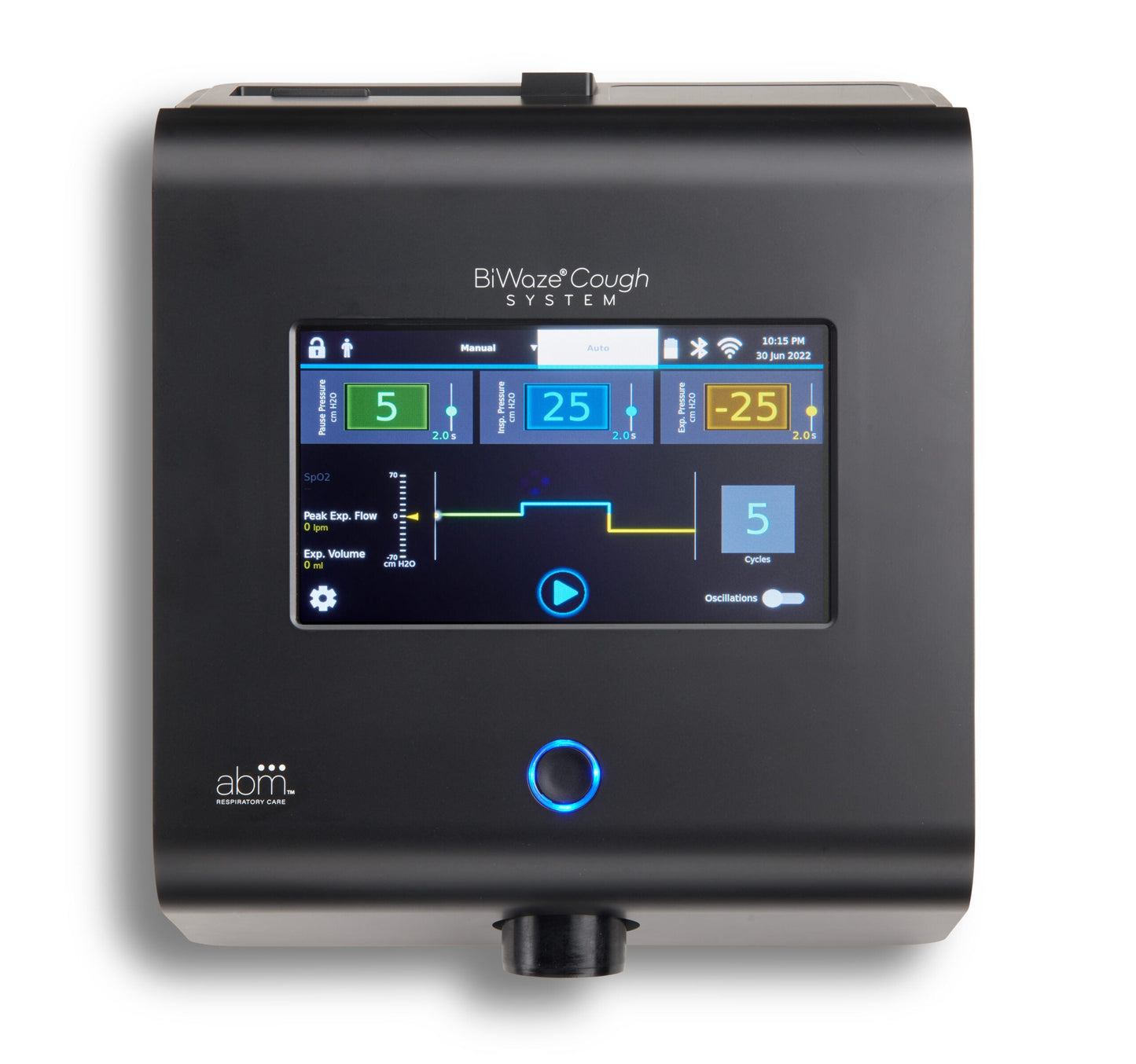

ABM Respiratory Care BiWaze Cough Assist System

ABM Respiratory Care BiWaze Cough Assist System

SKU: BC20113

HSA/FSA Eligible

Three quick steps
Save 30% by using your HSA or FSA card.
Pick HSA/FSA at checkout
Your HSA or FSA card is a payment option at checkout.
Use your HSA or FSA card
Use your HSA or FSA card, or split the order across two cards. No new account to open and no balance to top up. Bring the card your employer gave you.
Nothing else about your order changes
You pay the price on the product page.
Illustrative math, not tax advice and not a discount. Your savings depend on your own tax rates and your plan. Not everyone qualifies.
Learn more
Regular price $4,595.00 USD
Regular price $4,999.00 USD Sale price $4,595.00 USD
Sale Sold out
Shipping calculated at checkout.

Oscillations
The oscillation therapy feature delivers an oscillatory therapy based on frequency and amplitude settings. Use of the oscillation feature enhances mobilization and improves bronchial drainage.

Inspiratory Trigger
An important characteristic of the system is its ability to trigger on the patient’s inhale to help synchronize the therapy with the patient. The inspiratory trigger feature is available when the device is in Auto mode. The pressure delivery sequence is synchronized with the patient’s effort to inhale.

Inspiratory Flow
While the expiratory switching is desired to be fast and at high flow to simulate cough, the inspiratory flow may be controlled to a comfortable level by
selecting the flow between low, medium and high.

Positive Airway Pressure on the Pause Phase
Provides the option to keep airways open in-between the exhalation and inhalation phases of the cycle cough. This feature is designed to make the therapy more comfortable for the patient.

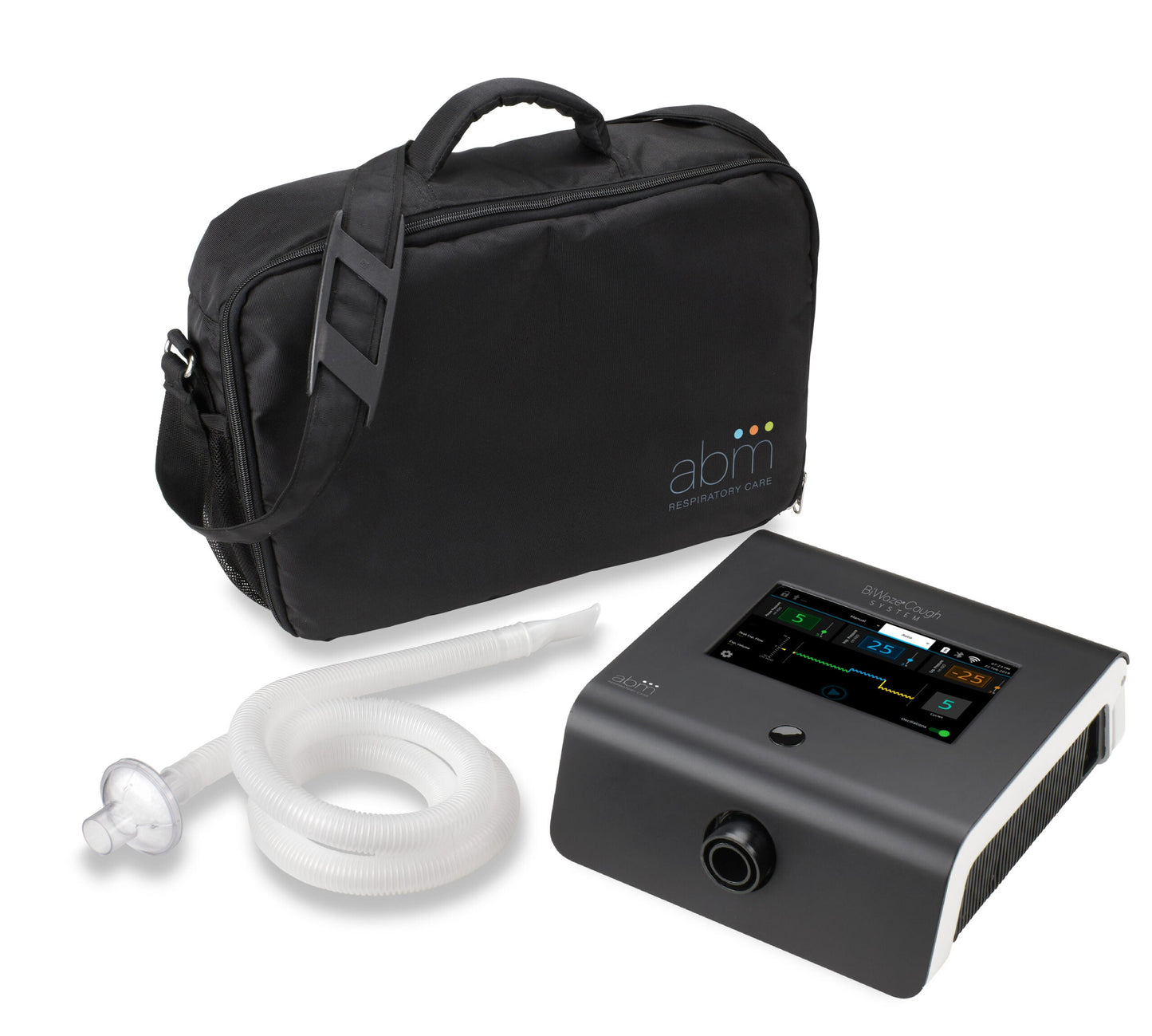

Included:
• BiWaze® Cough System
• Single-Path Breathing Tube
• Patient Port Adapter for 22mm Filter
• Adult Medium Face Mask
• Mobile Cart
• Battery
• Power Cord
• Carrying Bag
• User Manual

Specifications:

Operating temperature 40° to 95°F (5C to 35C)
Relative humidity 15 to 95% (non condensing)
Size 27 cm L x 23.5 cm W x 9.0 cm H (10.5″ L x 9.2″ W x 3.5″ H)
Weight 9lbs (4kg) including internal battery
Presets Up to 10
Modes Automatic and Manual
Maximum positive pressure 70 cm H20
Maximum negative pressure -70 cm H20
Maximum pause pressure 15 cm H20
Inspiratory time 0 – 5 seconds (auto mode only)
Expiratory Time 0 – 5 seconds (auto mode only)
Pause Time 0 – 5 seconds (auto mode only)
Inspiratory Flow Low, Medium, High
Inspiratory trigger sensitivity 1 – 10
Oscillation frequency 5 – 20 Hz
Amplitude 1 – 5
Warranty

1 Year on Device
90 Days on Battery
30 Days on Carry Bag
90 Days on Foot Pedal



Patient Guide
